Overview

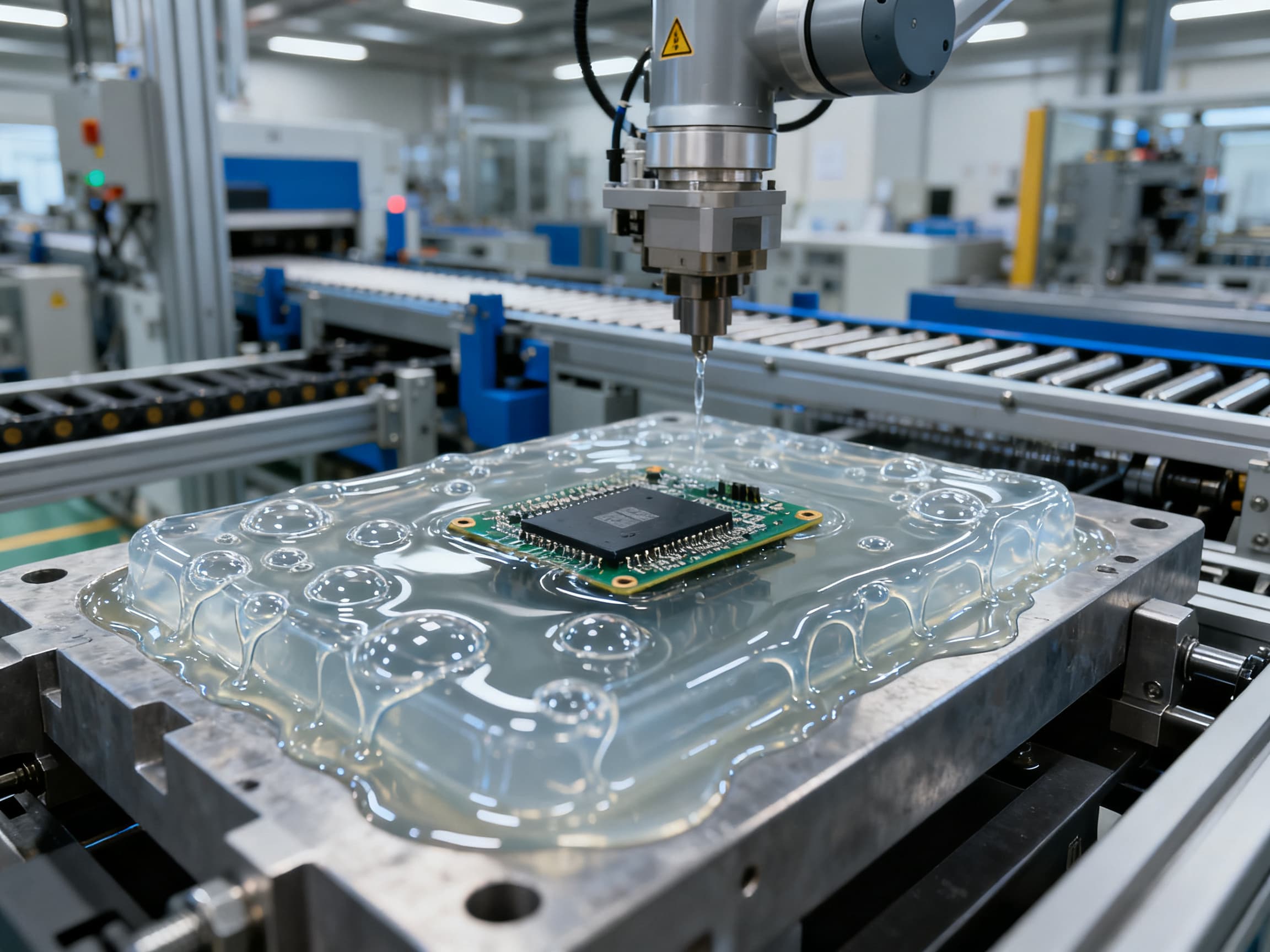

Consumer Electronics Potting & encapsulation
NovaPCBA supports OEM teams building consumer electronics hardware that needs reliable potting & encapsulation. We align early on stack-up, test access, and workmanship class before the first SMT panel.
Process highlights
- Potting & encapsulation with documented travelers and digital process checkpoints
- cosmetic AOI criteria, fast NPI cycles, cost-down DFM workshops
- DFM feedback on footprints, test points, and panelization for your CM strategy
- ICT, flying probe, or functional test hooks planned with your engineering team
Typical deliverables
First-article report, AOI images on request, coating certificates when applicable, and pack-out per your logistics spec. Share BOM, Gerber, and target volumes for a structured quote.
Why NovaPCBA
Western-facing project communication, ISO 9001 certified quality system, and Shenzhen capacity for pilot builds through steady production.
